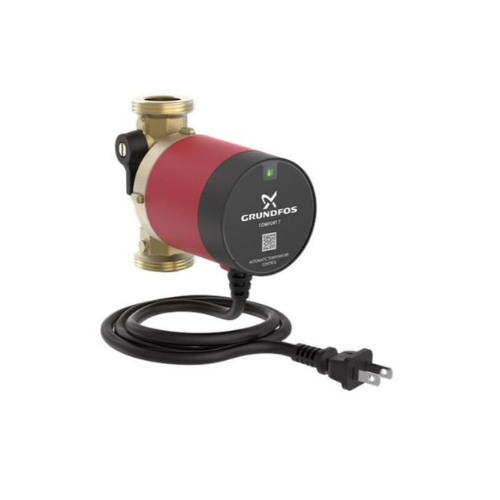

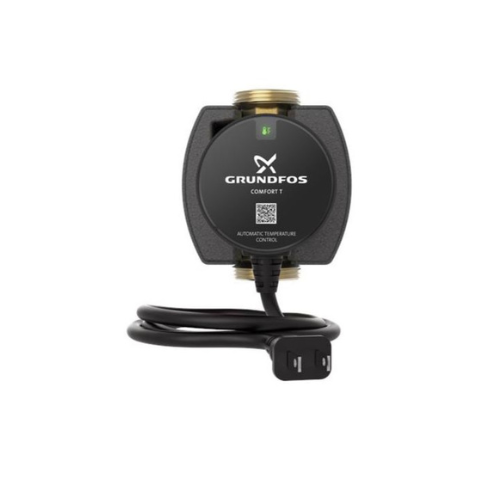

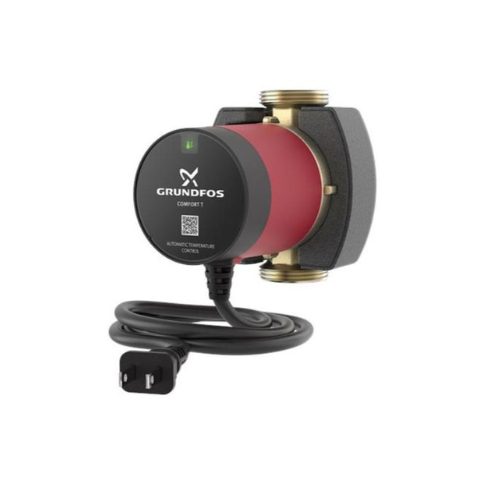

Comfort 10-16 T BU/LC Hot Water Recirculation Pump – 1-1/4" NPSM, Temperature-Controlled System

The Comfort 10-16 T BU/LC is a compact, energy-efficient hot water recirculation pump designed for use in residential plumbing systems. It provides near-instant hot water access to all faucets and fixtures in a private home, helping reduce water waste and improve comfort. Its compact design allows for quick installation, while its quiet operation ensures it blends seamlessly into household environments.

Key Features:

• Delivers instant hot water to reduce wait times and water waste
• Quiet operation for residential comfort
• Compact, easy-to-install design
• Compatible with 1-1/4" NPSM pipe connections
• Designed for private home applications

Note:
GU 125 union fittings are sold separately and required for installation. Compatible part numbers include: 529912, 519850, 519852, 519851, 529913, 529911.

Technical Specifications:

• Rated Flow: 1.45 US GPM
• Rated Head: 1.841 ft
• Maximum Head: 5.25 ft
• Maximum Operating Pressure: 145.04 psi (PN 10)
• Pipe Connection: 1-1/4" NPSM
• Port-to-Port Length: 4 3/8 in
• Power Input: Max. 6 W
• Voltage: 115–230 V, 60 Hz
• Current (Speed 3): 0.1 A
• Thermal Protection: Electronic
• Cable Type: Connecting cord with NEMA 1-15P plug
• TF Class: 95
• Enclosure Class: IP44
• Insulation Class: F
• Approvals: UL, CSA
• Built-in Motor Protection: None

Applications:
Ideal for residential hot water circulation in kitchens, bathrooms, and laundry areas, helping ensure hot water is always available without delay.
