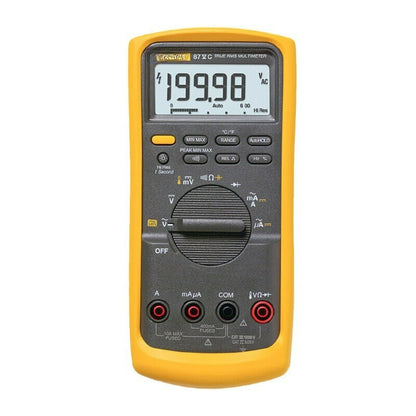

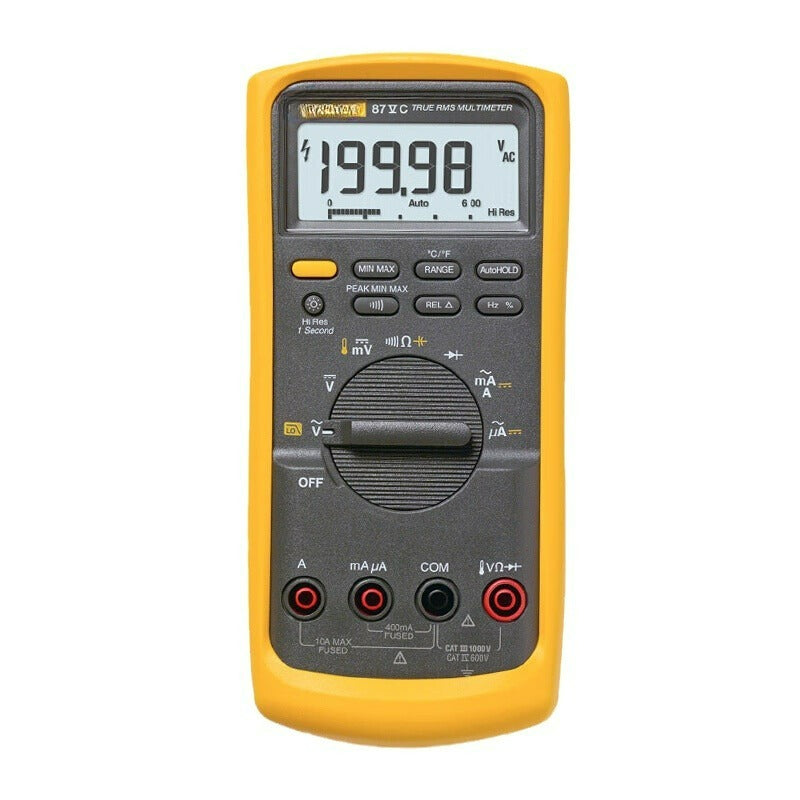

Industrial True RMS Multimeter

Industrial multimeter designed for accurate measurement of voltage, current, resistance, capacitance, frequency, and temperature. Features True RMS for precise AC readings and includes an analog bar graph for signal monitoring. Supports measurements up to 1000 V and 10 A with protection against voltage spikes above 8000 V. Equipped with a backlit display and an audible warning for incorrect test lead connections.

Specifications

• DC Voltage: 1000 V max, ±(0.05% + 1) accuracy, 10 µV resolution

• AC Voltage: 1000 V max, ±(0.7% + 2) True RMS, 0.1 mV resolution, 20 kHz bandwidth

• DC Current: 10 A max (20 A for 30 sec), ±(0.2% + 2) accuracy, 0.01 µA resolution

• AC Current: 10 A max (20 A for 30 sec), ±(1.0% + 2) True RMS accuracy, 0.1 µA resolution

• Resistance: 50 MΩ max, ±(0.2% + 1) accuracy, 0.1 Ω resolution

• Capacitance: 9999 µF max, ±(1% + 2) accuracy, 0.01 nF resolution

• Frequency: 200 kHz max, ±(0.005% + 1) accuracy, 0.01 Hz resolution

• Duty Cycle: 99.9% max, ±(0.2% per kHz + 0.1%) accuracy, 0.1% resolution

• Temperature: –200 to 1090 °C (–328 to 1994 °F), requires probe

• Display: 6000 counts digital, 32-segment analog bar graph, backlit

• Safety: EN 61010-1 CAT III 1000 V, CAT IV 600 V certified

• Dimensions: 201 x 98 x 52 mm with holster

• Weight: 355 g (without holster), 624 g (with holster)

Offers

• Audible warning for incorrect test lead placement

• Peak capture detects events as fast as 250 μS

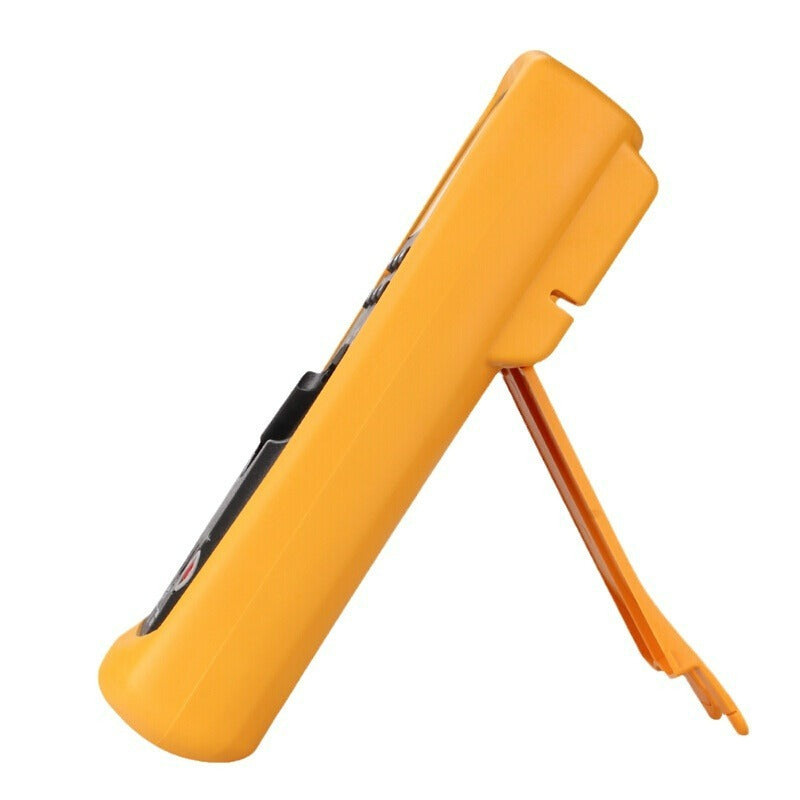

• Removable holster with test lead and probe storage

• Easy battery access without breaking calibration seal

• Fits optional magnetic hanger for hands-free use

• Designed to withstand voltage spikes over 8000 V
